BACOENG 1.2 QT Resin Trap Vacuum Chamber, Stainless Steel Vacuum Degassing Chamber Kit (3 Gallon/1.2 QT Available)

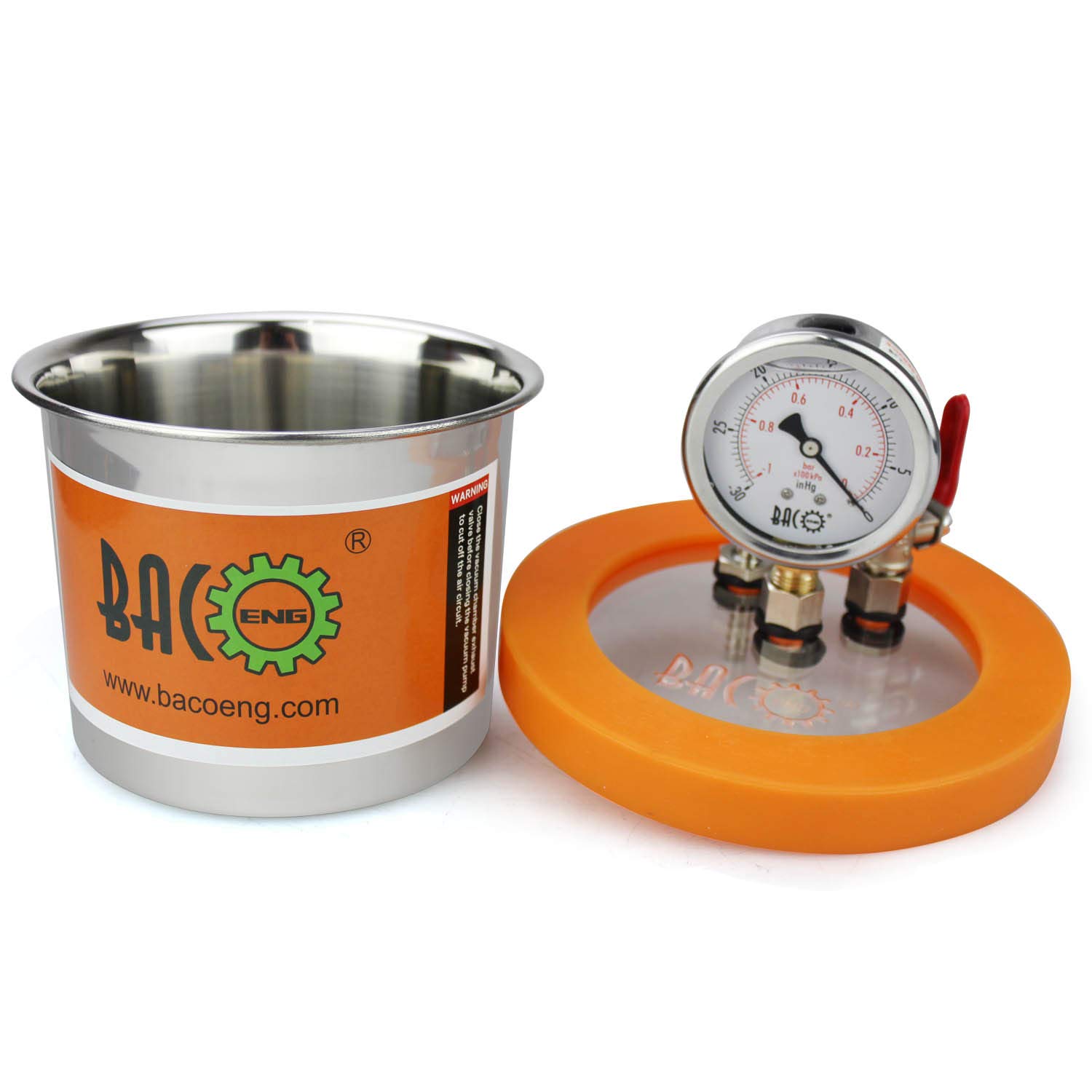

These vacuum-sealed tanks are installed in the vacuum bagging process between the mold and the vacuum pump to capture excess resin that enters the vacuum line. Resin traps are an integral part of all vacuum infusion and vacuum bagging processes. Our Stainless Steel resin traps come equipped with clear lids that allow you to easily monitor resin accumulation.NOTE:If large amounts of mixed resin remain in the feed pot or accumulate in the catch pot, the resin can become very hot indeed. In extreme circumstances, the resin can actually start smoking as it reaches very high temperatures.Keep an eye of the catch pot and wait for the exotherm to die down.TIPS:Apply mold release to all interior surfaces of the resin trap prior to lay-up for easy clean-up once the vacuum process is complete.Additional containers can be placed in the large tank to collect the resin.This Kit Includes:1 × Stainless Steel Chamber1 × Clear Acrylic Lid1 × Glycerin-filled Gauge1 × Air Manifold1 × Resin Catch Hose1 × Vacuum HoseAvailable Chamber Sizes:1.2 QT 4.3"(ID)× 3.9" (H)3 Gallon 9.8"(ID) × 9.8"(H)

• 1.2QT Resin Traps come complete with glycerin-filled vacuum gauge, fittings for use with 1/4" vacuum tubing,brass ball valve and instruction manual.
• Capture excess resin and protect your pump! Measuring range of vacuum gauge：0-29.25inHg
• Unique Catch Port Design: An additional hose can be installed at the port inside the tank to facilitate accurate collection of resin.
• 5 Feet Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4" SAE.
• Advice: Use Resin Trap with vacuum pump B0DCFKVPN1 together.
• 𝐍𝐎𝐓𝐄: NOT suitable for making fishing baits or stabilization wood. Please keep the temperature of the medium inside the chamber not exceeding 212℉.
