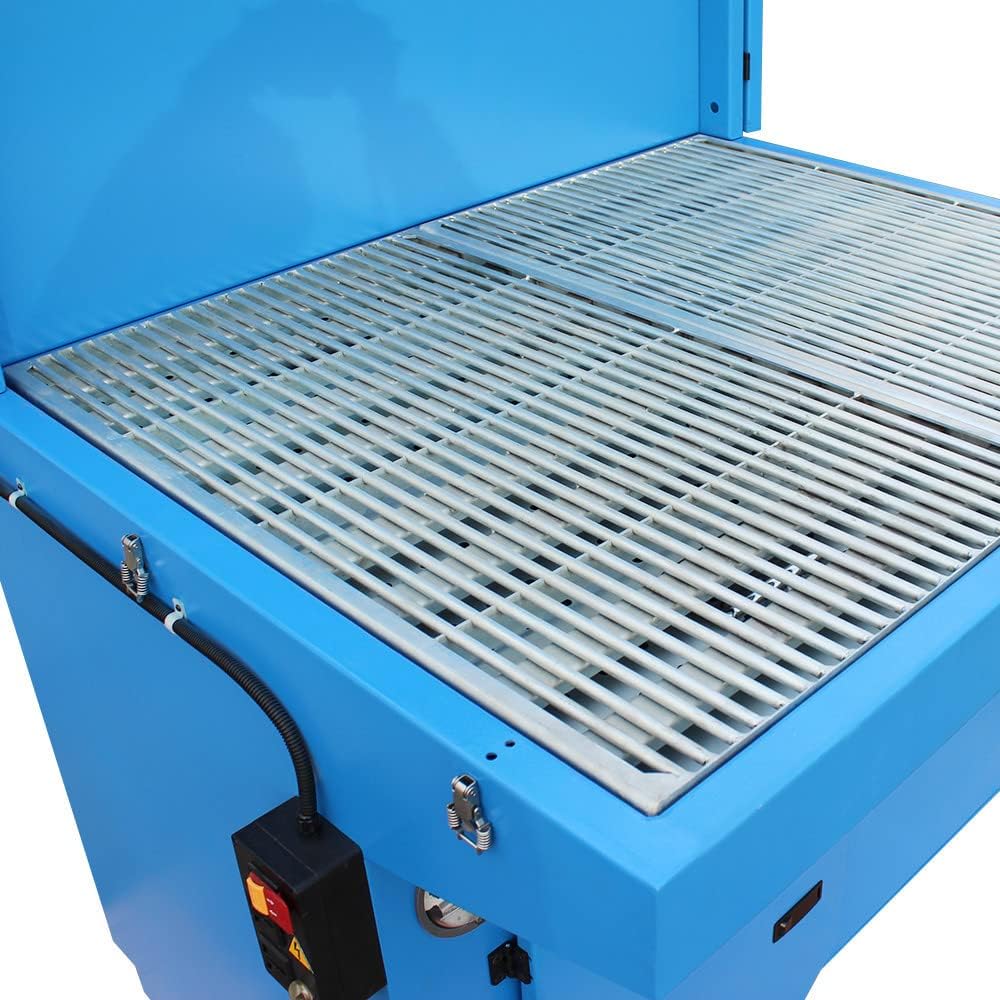

Metal Working Downdraft Table 46" x 38" Filter Dust Collector,3-Stage 1540 lb Load Capacity Grinding Welding Station

Metal Working Downdraft Table 46" x 38" Filter Dust Collector, 1540 lb Load Cap.CFM: 1,350 at baseMotor:* 2.2 hp (1.5kw)* Three Phase* 230 Volt @ 5.7 A* 3,360 RPMTable Load Capacity: 1,540 @ 80% (700kgs @ 80%)Table Size: 46" x 38" (1168 x 982 mm)Table Height: 38" (985 mm)Three Stage Filter:Stage-1: 11-1/4" x 24-13/16" x 7/8" (285x630x22 mm) Initial resistance 30Pa, Final resistance 120 Pa, efficiency G2Stage-2: 11-1/4" x 13" (285x330 mm) Initial resistance 70Pa, Final resistance 300 Pa, efficiency F7Stage-3: 18-11/16" x 20" x 5-15/16" (475x508x150 mm) Initial resistance 220Pa, Final resistance 420 Pa,2 side wall panels may be opened or can be removed completely for large work pieceOverall Dim L x W x H (in): * 60 x 39 x 38" with Top Wall Panel Removed* 60" x 39" x 72" with Top Wall AttachedWeight:781 lbsQuantity: 1

• Table Load Capacity: 1,540 @ 80% (700kgs @ 80%); Table Size: 46" x 38" (1168 x 982 mm); Table Height: 38" (985 mm)
• CFM: 1,350 at base ; Motor: * 2.2 hp (1.5kw); * Three Phase; * 230 Volt @ 5.7 A; * 3,360 RPM
• Stage-1: 11-1/4" x 24-13/16" x 7/8" (285x630x22 mm) Initial resistance 30Pa, Final resistance 120 Pa, efficiency G2
• Stage-2: 11-1/4" x 13" (285x330 mm) Initial resistance 70Pa, Final resistance 300 Pa, efficiency F7
• Stage-3: 18-11/16" x 20" x 5-15/16" (475x508x150 mm) Initial resistance 220Pa, Final resistance 420 Pa,
