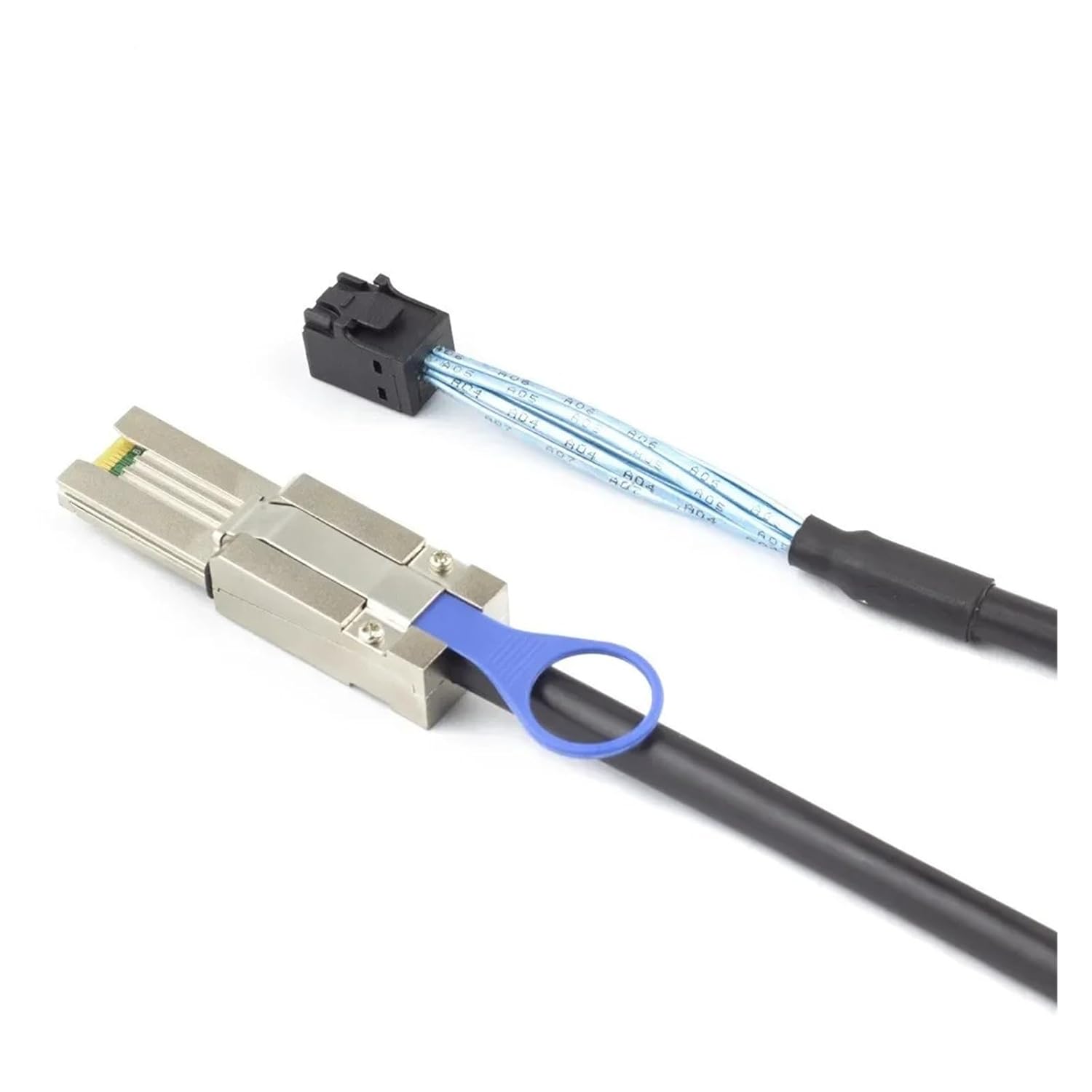

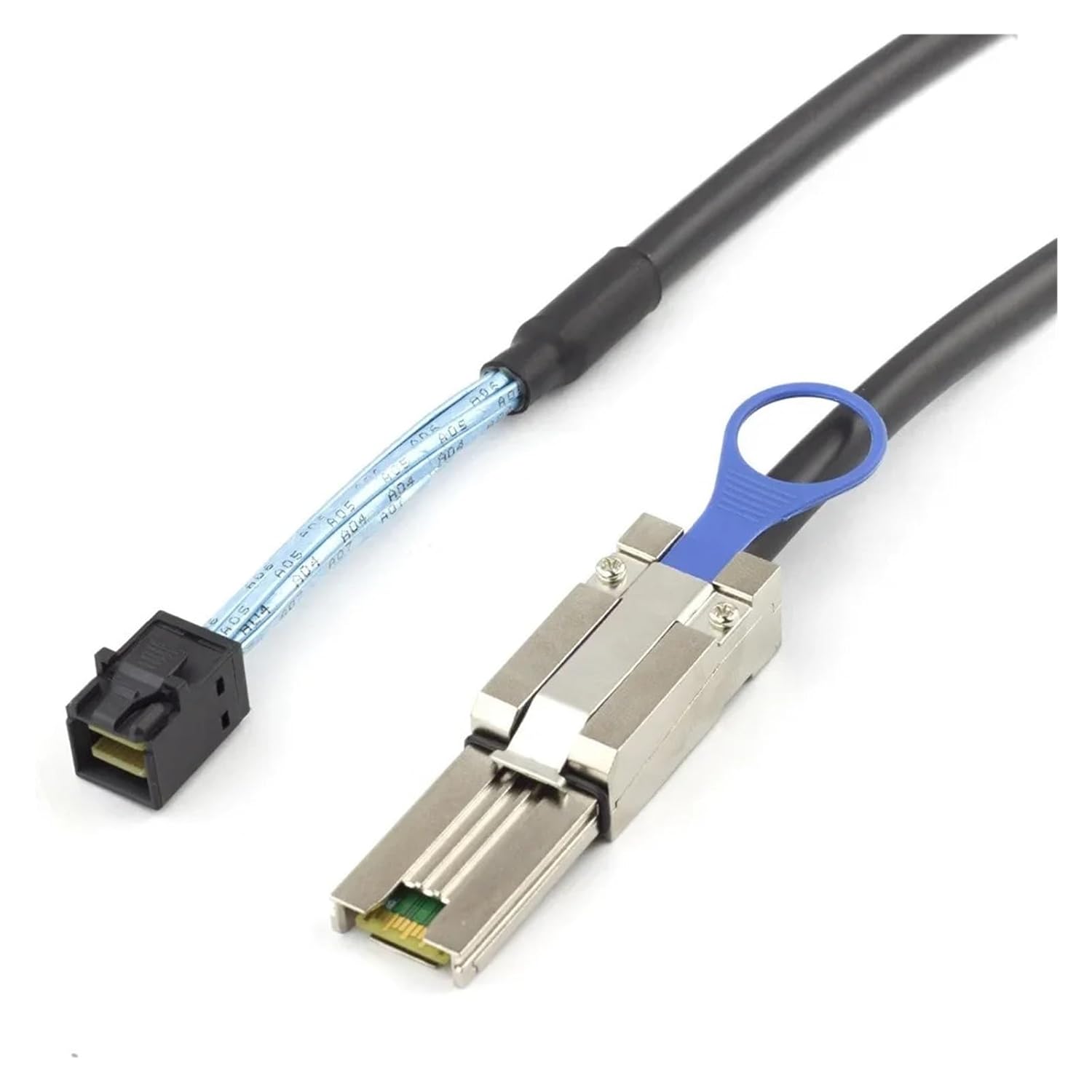

S/AS Cable, SFF-8643 to SFF-8088 Straight to Straight High-Speed Data Transfer for/RAID Controllers(0.5M)

Product Description:M1ni S/AS HD SFF-8088 to S/AS 8643 4i Data Server CableSeries: M1ni S/AS HDCable Length: 0.5M /1.0 M/2.0M/3.0MWire Size: 28AWG, Tinned Copper,Plating: Au 30u' min over Ni 100u' minColor: Cable BLACK, Over : ZINC-ALLOY SHELLCompliance: Flammability: Cable Horizontal flame, PCB 94V-0,ApplicationsData/Communications1. (Redundant Array of Independent Disks)2.Workstations3.Rack-mount server4.Servers5.Storage rackFeatures and Benefits1.Transmission rate 6Gbps.2. Meet SAS4.0 specification.Mechanical PerformanceMating Force and Unmating ForceCondition: EIA 364-13. Insert and extract at a speed of25mm/minute.Mating Force: 55 N maximum for M1ni S/AS.Unmating Force: 49 N maximum for M1ni S/AS.Electrical Performance1. Current Rating0.5Amperes maximum per pin when mated.2.Voltage Rating30VAC per when mated or unmated.3. Resistance30mohm max. initial, 15mohm maximum after stress test.4.Dielectric Withstanding Voltage500 VAC for 1 minute no breakdown.5.Insulation Resistance1000 Mohm minimum.Signal Integrity1. Mated Connector Impedance: 100 Ω±15%2. Cable Absolute Impedance: 100 Ω±10%3. Cable Pair Matching: ±5 Ω4. Common Impedance: 25 to 40 ohms5. Insertion loss: -6dB maximum up to 4.5Ghz;6. Crosstalk: -26 dB up to 6Ghz;Hign-concerned Chem/*ical : NoneModel Number : SF-044TY>pe : / S/AS / InfiniBand CablesOrigin : ChinaCertification : None

• Product Description:
• M1ni S/AS HD SFF-8088 to S/AS 8643 4i Data Server Cable
• Series: M1ni S/AS HD
• Cable Length: 0.5M /1.0 M/2.0M/3.0M
• Wire Size: 28AWG, Tinned Copper,
