Type 2 to Type 1 EV Charging Cable, IEC 62196 Male to J1772 Female, 32A 7kW Single Phase, 110-250 VAC, 5m (16.4ft), IP67 Waterproof

This Type 2 to Type 1 EV charging cable provides reliable power delivery for your electric vehicle. With a generous 16.4ft (5m) length, this 32A cable delivers up to 7.2kW single-phase charging power, operating between 110-250 VAC. Built to withstand demanding conditions, it functions across temperatures from -31°F to 122°F and features an IP67 rating for protection against dust and water. The cable meets IEC 62196 and SAE J1772 charging standards, ensuring broad compatibility. Its robust construction supports over 10,000 plug-in cycles, while the optimal insertion force range of 45N-80N allows for smooth connection without strain. The 2000V withstand voltage and 0.5mΩ maximum insulation resistance demonstrate its safety-focused design. Note that this cable is designed for direct charging only and cannot be used as an extension cable. Each unit comes complete with the charging cable featuring Type 2 male and J1772 female connectors.

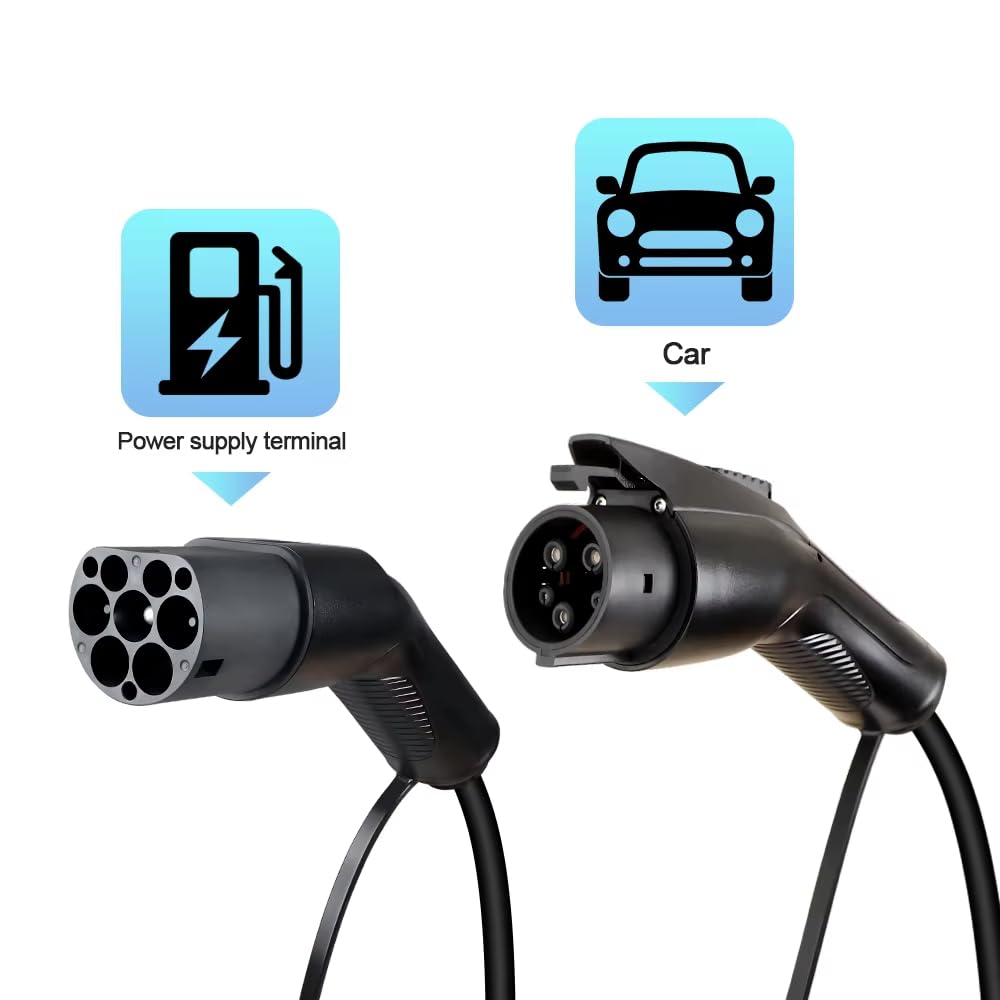

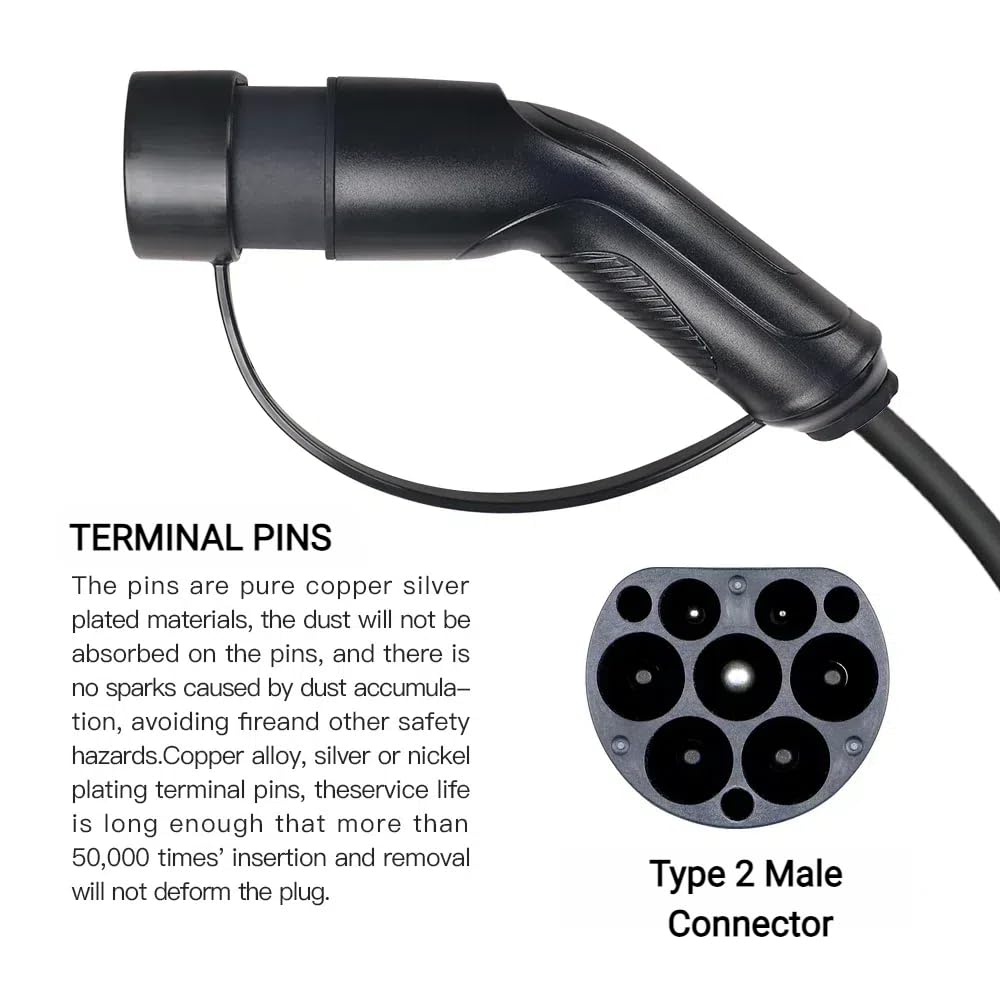

• CHARGING COMPATIBILITY: Type 2 to Type 1 EV charging cable with IEC 62196 male connector to SAE J1772 female connector for Mode 3 electric vehicle charging applications.
• POWER SPECIFICATIONS: Rated at 32A current and 7.2kW single phase power with voltage range of 110-250 VAC, compliant with IEC 62196 and SAE J1772 charging standards.
• DURABLE CONSTRUCTION: IP67 waterproof rating with insulation resistance of 0.5mΩ max, withstands voltage up to 2000V, and operates in extreme temperatures from -31°F to +122°F.
• LONG-LASTING RELIABILITY: Mechanical life rated for over 10,000 insertion and unplugging cycles with coupled insertion force between 45N and 80N for secure connections.
• CABLE LENGTH: 5 meter (16.4 feet) cable length provides flexible reach between charging station and vehicle. Note: Cannot be used as an extension cable.
